Big Diameter Metal Tube Polishing Machine 0–6 M/Min Input Speed Safety Operation

Big diameter metal tube polishing Machine

Product Description

Big diameter metal tube polishing equipment shown as below for polishing big diameter straight round tube. The tube to be polished can have tapers or varying diameters. The advantages of our metal tube polishing equipment are below:

• High profitability and high production
• More than 10 years usage life and safety operation
• Intelligent and humane designation
• Precision finishing without deformation after polishing
• Higher production can up to 15m/min with 8K mirror finishing. Common machine only can achieve 8m/min

Specification of metal tube polishing equipment

Details section of metal tube polishing equipment

Loading/Unloading section of the metal tube polishing equipment

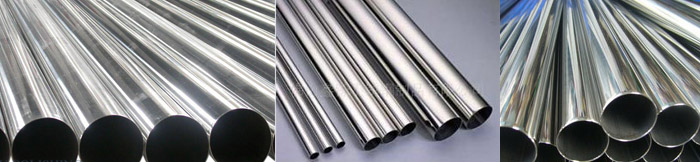

The polished tubes

Consumables usage

How to use consumables to get needed finish by this metal tube polishing equipment?

Manufacturing costs, timelines and right polished finishing are always under tight scrutiny from last 20 years. Here, we can give you options at every point of polishing process that ultimately determine your success with 6 levels of polishing range from grinding to 100% 8K mirror finishing. We can use right consumables and polishing process to achieve a profitable cost and get right polished finishing as you need. Details of 6 levels as below:

• Grinding finish: Usually use 60#-80# grit abrasive belt or flap wheels.
• Brushed finish: Usually use 120#-180# grit abrasive belt or flap wheels.
• Sanitary finish: Usually use 180#-240# grit abrasive belt or flap wheels.
• Polished finish: Usually use 240#-320# grit abrasive belt or flap wheels, then use sisal wheel.
• Glossy finish: Usually use 400#-600# grit abrasive belt or flap wheels, sisal wheel, common cloth wheel.
• Mirror finish: Usually use 600#-800# grit abrasive belt,then use sisal wheel,hard cloth wheel,at last step use cotton wheels to get 100% 8K Mirror finishing.

Picture of consumables

tube buffing machine

pipe surface polisher

Big Diameter Metal Tube Polishing Machine 0–6 M/Min Input Speed Safety Operation Images
